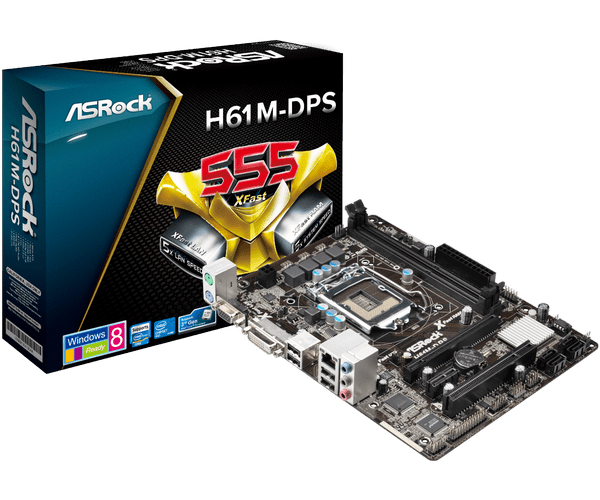

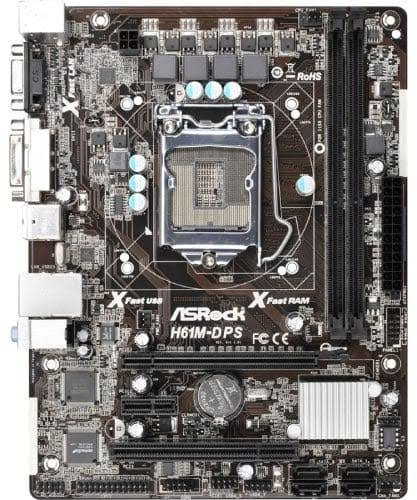

H61 مادربرد ازراک

H61 asrack
برند:ازراک

3,000,000 10%

2,700,000
توضیحات

  • CPU

    - Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
    - Supports Intel® Turbo Boost 2.0 Technology
    - Supports Hyper-Threading Technology

  • Chipset

    - Intel® H61
    - Supports Intel® Rapid Start Technology and Smart Connect Technology


    *Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.

  • Memory

    - Dual Channel DDR3 memory technology
    - 2 x DDR3 DIMM slots
    - Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
    - Max. capacity of system memory: 16GB*
    - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel® Ivy Bridge CPU


    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

    **The highest supported DRAM frequency depends on the CPU you've installed. For detailed CPU specifications, please refer to Intel® official website.

    ***In order to maximize the system memory, please install 8GB memory module with 16 cells

  • BIOS

    - 32Mb AMI UEFI Legal BIOS with GUI support
    - Supports "Plug and Play"
    - ACPI 1.1 Compliance Wake Up Events
    - Supports jumperfree
    - SMBIOS 2.3.1 Support

  • Graphics

    - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
    - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
    - Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU.
    - Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU.
    - Two graphics output options: support DVI-D and D-Sub ports by independent display controllers
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
    - Supports HDCP function with DVI-D port
    - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port
